WELCOME!
to IMGT/Collier-de-Perles Documentation


IMGT®, the international ImMunoGeneTics information system®

IMGT

Collier
Citing IMGT/Collier-de-Perles:

Ruiz, M. and Lefranc, M.-P. Immunogenetics, 53:857-883 (2002). PMID:11862387

Kaas, Q. and Lefranc, M.-P. Current Bioinformatics, 2:21-30 (2007). pdf

Kaas, Q., Ehrenmann, F. and Lefranc, M.-P. Brief. Funct. Genomic Proteomic, 6:253-264 (2007). PMID:18208865 pdf

Ehrenmann, F., Giudicelli., V, Duroux, P., Lefranc, M.-P. Cold Spring Harbor Protoc., 6:726-736 (2011). PMID:21632776 Abstract also in IMGT booklet with generous provision from Cold Spring Harbor (CSH) Protocols pdf (high res) pdf (low res)

Introduction

IMGT/Collier-de-Perles is part of IMGT®, the international ImMunoGeneTics information system®, the high-quality integrated information system specialized in immunoglobulins (IG), T cell receptors (TR), major histocompatibility complex (MH) of human and other vertebrates species, immunoglobulin superfamily (IgSF), MHC superfamily (MhcSF) and related proteins of the immune system (RPI), created in 1989 by Marie-Paule Lefranc (Laboratoire d'ImmunoGénétique Moléculaire, LIGM, Université Montpellier II and CNRS) and on the Web since July 1995.

IMGT/Collier-de-Perles is a tool that allows to draw standardized IMGT 2D graphical representations of protein domains, or IMGT Colliers de Perles, starting from the user own domain amino acid sequences.

What IMGT/Collier-de-Perles allows

IMGT Colliers de Perles can be drawn for four domain types:

  1. variable (V) domain of the immunoglobulin (IG) and T cell receptor (TR) (V-DOMAIN) and other members of the immunoglobulin superfamily (IgSF) (V-LIKE-DOMAIN),
  2. constant (C) domain of the immunoglobulin (IG) and T cell receptor (TR) (C-DOMAIN) and other members of the immunoglobulin superfamily (IgSF) (C-LIKE-DOMAIN),
  3. groove (G) domain of the major histocompatibility (MH) (G-DOMAIN) and other members of the MH superfamily (MhSF) (G-LIKE-DOMAIN).
  4. scavenger (S) domain of the scavenger receptor superfamily (SrSF).
  5. fibrinogen (F) domain structurally related to fibrinogen type III (FN10) domain, found in members of the immunoglobulin superfamily (IgSF) and other superfamilies
  6. apple (A) domain of kallikrein (KLK1) and other members of the kallikrein family and coagulation factor XI (F11)

By default, the web application is loaded for V type domains.

IMGT Collier de Perles for V domain

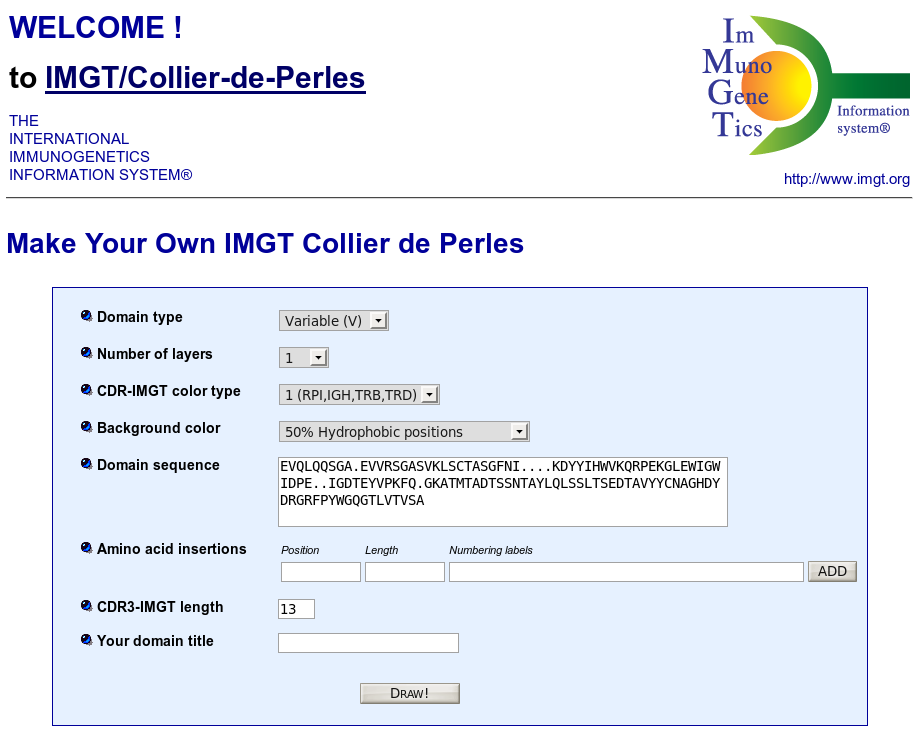

IMGT/Collier-de-Perles query (V domain)

  1. Locate the "Domain type" drop-down list: "Variable (V)" is displayed. "Variable (V)" allows to draw IMGT Colliers de Perles for variable domains which include the V-DOMAIN of IG and TR and the V-LIKE-DOMAIN of IgSF other than IG and TR.
  2. Locate the "Number of layers" drop-down list. Select 1 or 2, depending on the number of layers you want for the display of the IMGT Collier de Perles. Default is 1. This choice is only available for variable (V) and constant (C) domains.
  3. Locate the "CDR-IMGT color type" drop-down list, and select "1 (RPI,IGH,TRB,TRD)" or "2 (IGK,IGL,TRA,TRG)" depending on the locus to which the sequence belongs. This choice is only available for variable (V) domains.
  4. Locate the "Background color" drop-down list, and select one of the 10 lines depending on the property you want to highlight in your IMGT Collier de Perles by comparison with previously analysed domains of the same locus (Pommié et al., IMGT standardized criteria for statistical analysis of immunoglobulin V-REGION amino acid properties, J. Mol. Recognit., 17:17-32 (2004). PMID:14872534). This choice is only available for variable (V) domains. Ten selections are provided (the first one by default):
    • 50% Hydrophobic positions: positions that have an hydrophobic amino acid (hydropathy index with positive value) or a tryptophan (W) like 50% or more of analysed V domains (blue positions in IMGT Collier de Perles).
    • IGH 80% hydropathy classes: positions with amino acids (AA) that have the same hydropathy class, like 80% or more of analysed IGH V domains (3 classes).
    • IGK 80% hydropathy classes: positions with AA that have the same hydropathy class, like 80% or more of analysed IGK V domains (3 classes).
    • IGL 80% hydropathy classes: positions with AA that have the same hydropathy class, like 80% or more of analysed IGL V domains (3 classes).
    • IGH 80% volume classes: positions with AA that have the same volume class, like 80% or more of analysed IGH V domains (5 classes).
    • IGK 80% volume classes: positions with AA that have the same volume class, like 80% or more of analysed IGK V domains (5 classes).
    • IGL 80% volume classes: positions with AA that have the same volume class, like 80% or more of analysed IGL V domains (5 classes).
    • IGH 80% physicochemical classes: positions with AA that have the same physicochemical class, like 80% or more of analysed IGH V domains (11 classes).
    • IGK 80% physicochemical classes: positions with AA that have the same physicochemical class, like 80% or more of analysed IGK V domains (11 classes).
    • IGL 80% physicochemical classes: positions with AA that have the same physicochemical class, like 80% or more of analysed IGL V domains (11 classes).
  5. Locate the "Domain sequence" text area, and enter your gaped sequence obtained, for example, from IMGT/DomainGapAlign. A complete IMGT Collier de Perles of an IG or TR V-DOMAIN includes the CDR3-IMGT and the FR4-IMGT. The FR4-IMGT is at least composed of 9 or 10 amino acids beyond the phenylalanine F (J-PHE 118) or tryptophan W (J-TRP 118) of the motif F/W-G-X-G that characterizes the J-REGION. If the length of the CDR3-IMGT of your sequence is inferior to 13, you need to add gaps at the top of the loop (Lefranc et al., IMGT unique numbering for immunoglobulin and T cell receptor variable domains and Ig superfamily V-like domains, Dev. Comp. Immunol., 27:55-77 (2003). PMID:12477501). If the CDR3-IMGT is equal or superior to 13, the tool will automatically adjust the number of positions to the length (provided that you fill in the required field in step 7). Here are examples of gapped sequences (variable domain):
    EVQLQQSGA.EVVRSGASVKLSCTASGFNI....KDYYIHWVKQRPEKGLEWIGWIDPE..IGDTEYVPKFQ.GKATMTADTSSNTAYLQLSSLTSEDTAVYYCNAGHDYDRGRFPYWGQGTLVTVSA

    Or
    .KEVEQNSGPLSVPEGAIASLNCTYSDRG......SQSFFWYRQYSGKSPELIMSIYS....NGDKED.....GRFTAQLNKASQYVSLLIRDSQPSDSATYLCAVTTDS..WGKLQFGAGTQVVVTP

  6. Locate the "Amino acid insertions" text area, and enter, if needed, amino acids insertions. This option is only needed if you deal with unusual sequences characterized by insertions compared to the reference sequences. This can be the case of IgSF V-LIKE-DOMAIN that have amino acid insertions compared to the IG and TR V-DOMAIN. The program for renumbering is based on an alignment of Smith and Waterman, that use IMGT insertions as new amino acids and strongly penalize the opening of gaps in the reference sequence. To add an insertion, enter the position that precedes the insertion, the length (that is the number of amino acids to add) and the numbering label(s) of the novel positions, for instance "84,1,84A" means that, following 84, one insertion labelled 84A has to be added. Then click "ADD". Repeat the process if several insertions have to be entered.
  7. Locate the "CDR3-IMGT length" text area, and enter the length of the CDR3-IMGT (required).
  8. Locate the "Your domain title" text area, and enter a name that you would like to be displayed in the figure (optional).
  9. Press the "Draw !" button to visualize the IMGT Collier de Perles for V domain. This will return a page showing the IMGT Collier de Perles taking into account your choices.

IMGT/Collier-de-Perles results (V domain)

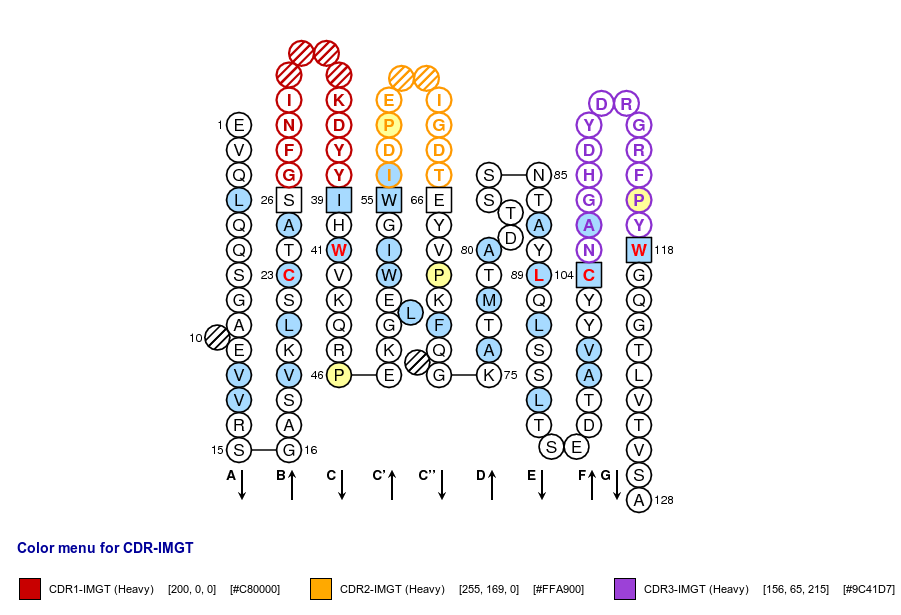

  1. IMGT Collier de Perles of a variable (V) domain, on one layer, obtained after selection of "1 (RPI,IGH,TRB,TRD)" in CDR-IMGT color type, the domain belonging to an IGH chain, by default "50% Hydrophobic positions" and a CDR3-IMGT length of 13. Positions in blue mean that the AA of the user sequence at these positions is hydrophobic (hydropathy index with positive value) or is a tryptophan (W), like in 50% or more of analysed V domains. Positions with red and bold letters indicate the five conserved positions of a V domain: 1st-CYS 23, CONSERVED-TRP 41, hydrophobic 89, 2nd-CYS 104 and J-TRP 118. Anchor positions are in square. Hatched positions correspond to gaps according to the IMGT unique numbering for V domain. Proline are shown in yellow. Arrows indicate the beta strands and their direction. The CDR-IMGT lengths of this domain are [10.7.13].

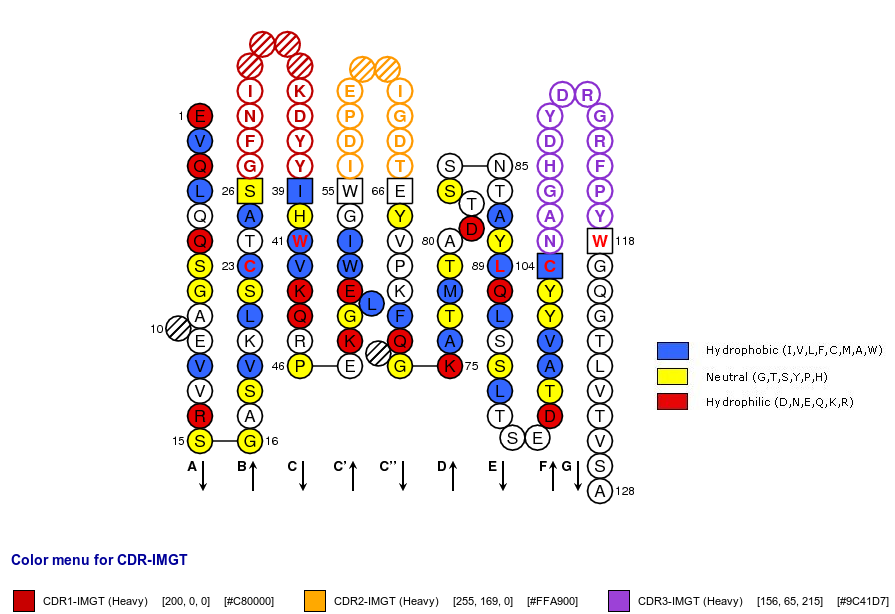

  2. IMGT Collier de Perles of a variable (V) domain with "IGH 80% hydropathy positions". Colored positions (3 classes) mean that the property of the AA of the user sequence at these positions is found in more than 80% of the analysed IGH V domains. IMGT Collier de Perles of a variable (V) domain with "IGH 80% hydropathy positions". Colored positions (3 classes) mean that the property of the AA of the user sequence at these positions is found in more than 80% of the analysed IGH V domains.
  3. IMGT Collier de Perles of a variable (V) domain with "IGH 80% volume positions". Colored positions (5 classes) mean that the property of the AA of the user sequence at these positions is found in more than 80% of the analysed IGH V domains.

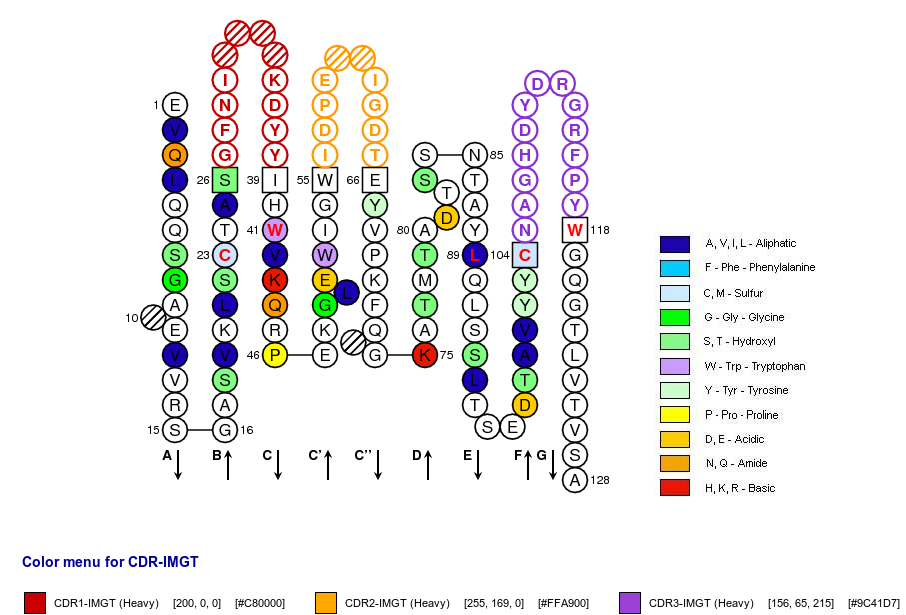

  4. IMGT Collier de Perles of a variable (V) domain with "IGH 80% physicochemical positions". Colored positions (11 positions) mean that the property of the AA of the user sequence at these positions is found in more than 80% of the analysed IGH V domains.

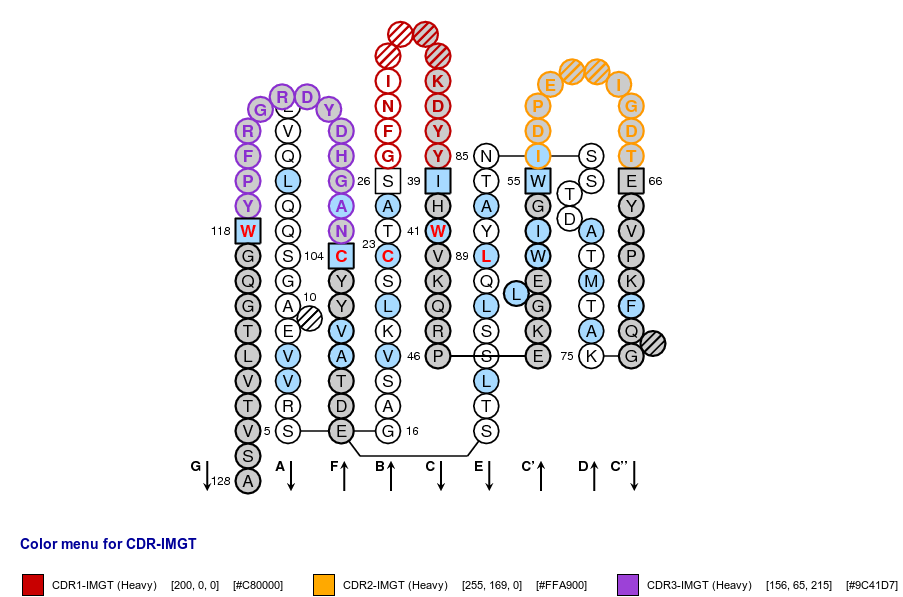

  5. IMGT Collier de Perles of a variable (V) domain, on two layers, obtained after selection of "2" in Number of layers, "1 (RPI,IGH,TRB,TRD)" in CDR-IMGT color type, the domain belonging to an IGH chain, and by default "50% Hydrophobic positions".

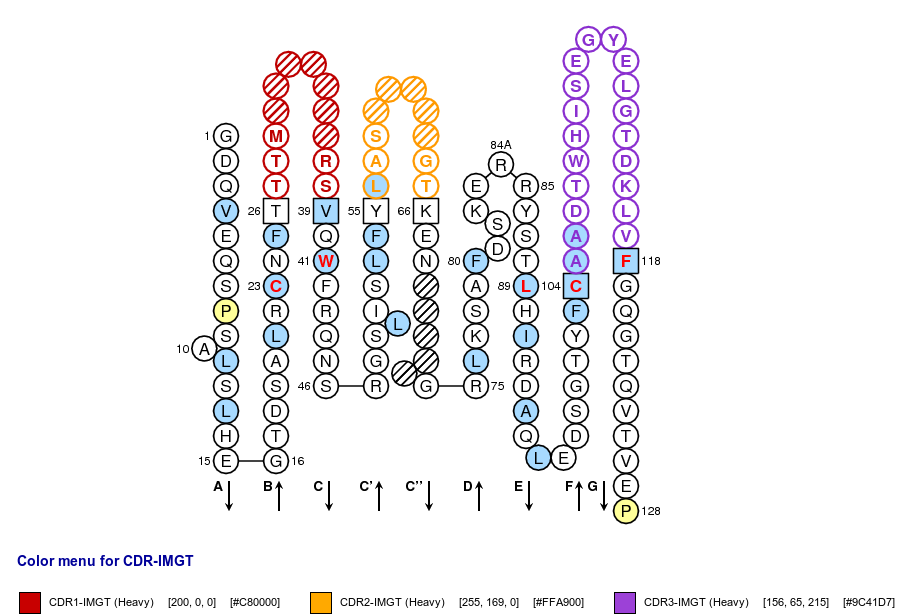

  6. IMGT Collier de Perles of a variable (V) domain, on one layer, obtained after selection of "1" in Number of layers, "2 (IGK,IGL,TRA,TRG)" in CDR-IMGT color type, the domain belonging to an TRA/D chain, CDR3 length equals to 19, one insertion at position 84 (84A) and by default "50% Hydrophobic positions". Here is the gapped sequence used (variable domain, TRAV group):
    GDQVEQSPSALSLHEGTDSALRCNFTTTM.......RSVQWFRQNSRGSLISLFYLAS.....GTKEN.....GRLKSAFDSKERRYSTLHIRDAQLEDSGTYFCAADTWHISEGYELGTDKLVFGQGTQVTVEP


IMGT Collier de Perles for C domain

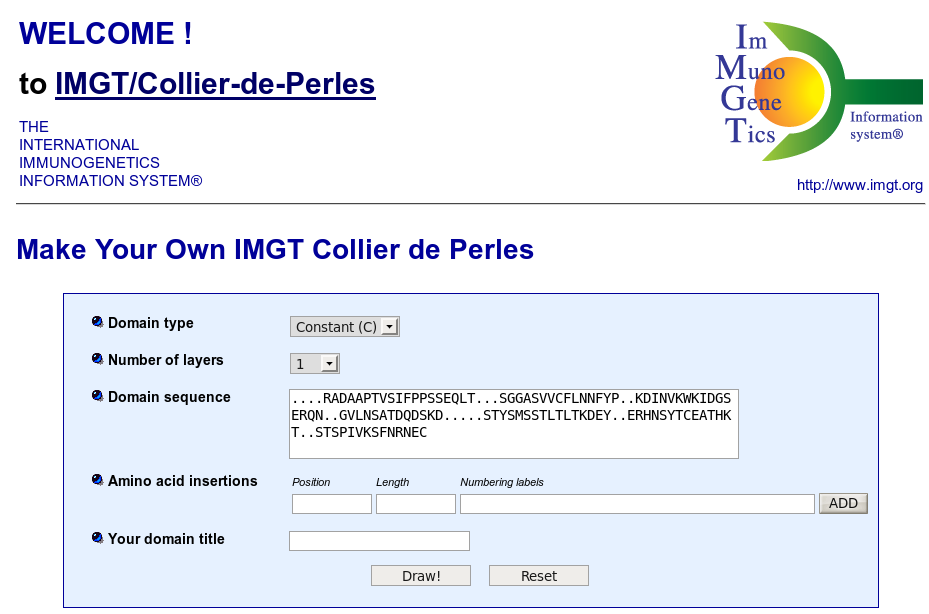

IMGT/Collier-de-Perles query (C domain)

  1. Locate the "Domain type" drop-down list and choose "Constant (C)". This will change the page of the web application. "Constant (C)" allows to draw IMGT Colliers de Perles for constant domains which include the C-DOMAIN of IG and TR and the C-LIKE-DOMAIN of IgSF other than IG and TR.
  2. Locate the "Number of layers" drop-down list. Select 1 or 2, depending on the number of layers you want for the display of the IMGT Collier de Perles. Default is 1. This choice is only available for variable (V) and constant (C) domains.
  3. Locate the "Domain sequence" text area, and enter your gaped sequence obtained, for example, from IMGT/DomainGapAlign. Here are examples of gapped sequences (constant domain):
    ....ASTKGPSVFPLAPSSKSTS...GGTAALGCLVKDYFP..QPVTVSWNSGALTS....GVHTFPAVLQSS......GLYSLSSVVTVPSSSL...GTQTYICNVNHKP..SNTKVDKKV

    Or
    ....RADAAPTVSIFPPSSEQLT...SGGASVVCFLNNFYP..KDINVKWKIDGSERQN..GVLNSATDQDSKD.....STYSMSSTLTLTKDEY..ERHNSYTCEATHKT..STSPIVKSFNRNEC

  4. Locate the "Amino acid insertions" text area, and enter, if needed, amino acids insertions. This option is only needed if you deal with unusual sequences characterized by insertions compared to the reference sequences. This can be the case of IgSF C-LIKE-DOMAIN that have amino acid insertions compared to the IG and TR C-DOMAIN. The program for renumbering is based on an alignment of Smith and Waterman, that use IMGT insertions as new amino acids and strongly penalize the opening of gaps in the reference sequence. To add an insertion, enter the position that precedes the insertion, the length (that is the number of amino acids to add) and the numbering label(s) of the novel positions, for instance "84,1,84A" means that, following 84, one insertion labelled 84A has to be added. Then click "ADD". Repeat the process if several insertions have to be entered.
  5. Locate the "Your domain title" text area, and enter a name that you would like to be displayed in the figure (optional).
  6. Press the "Draw !" button to visualize the IMGT Collier de Perles for C domain. This will return a page showing the IMGT Collier de Perles taking into account your choices.

IMGT/Collier-de-Perles results (C domain)

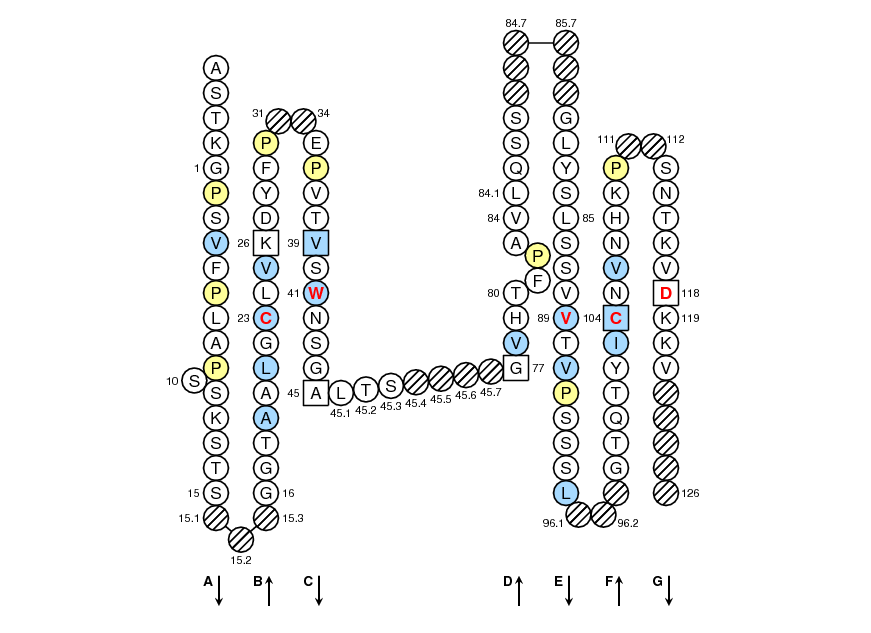

  1. IMGT Collier de Perles of a constant (C) domain, on one layer, the domain belonging to an IGH chain. Positions in blue mean that the AA of the user sequence at these positions is hydrophobic (hydropathy index with positive value) or is a tryptophan (W), like in 50% or more of analysed V domains. Positions with red and bold letters indicate the five conserved positions of a V domain: 1st-CYS 23, CONSERVED-TRP 41, hydrophobic 89 and 2nd-CYS 104. Anchor positions are in square. Hatched positions correspond to gaps according to the IMGT unique numbering for C domain. Proline are shown in yellow. Arrows indicate the beta strands and their direction.
  2. IMGT Collier de Perles of a constant (C) domain, on two layers, obtained after selection of "2" in Number of layers, the domain belonging to an IGH chain.

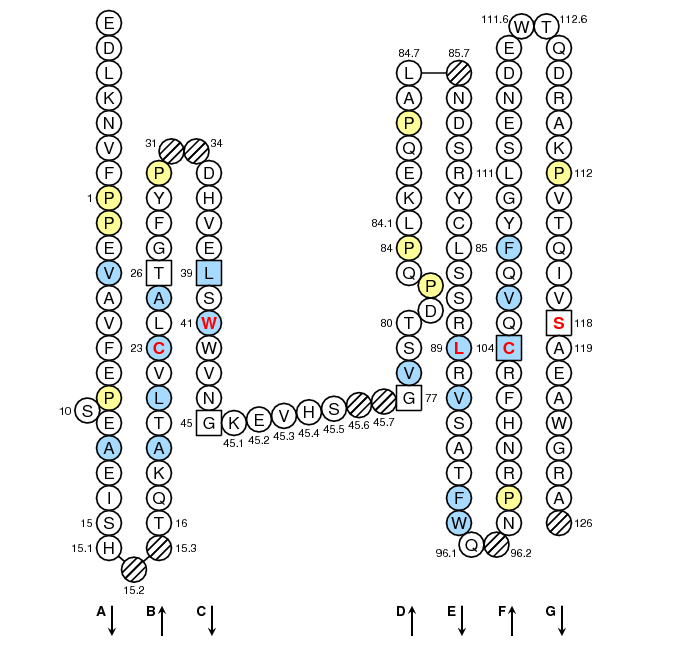

  3. IMGT Collier de Perles of a constant (C) domain, on one layer, obtained after selection of "1" in Number of layers, the domain belonging to an TRB chain, twelve insertions at positions 111 and 112 (111,12,111.1;111.2;111.3;111.4;111.5;111.6;112.6;112.5;112.4;112.3;112.2;112.1). Here is the gapped sequence used (constant domain, TRBC group):
    .EDLKNVFPPEVAVFEPSEAEISH..TQKATLVCLATGFYP..DHVELSWWVNGKEVHS..GVSTDPQPLKEQPAL.NDSRYCLSSRLRVSATFWQ.NPRNHFRCQVQFYGLSENDEWTQDRAKPVTQIVSAEAWGRA


IMGT Collier de Perles for G domain

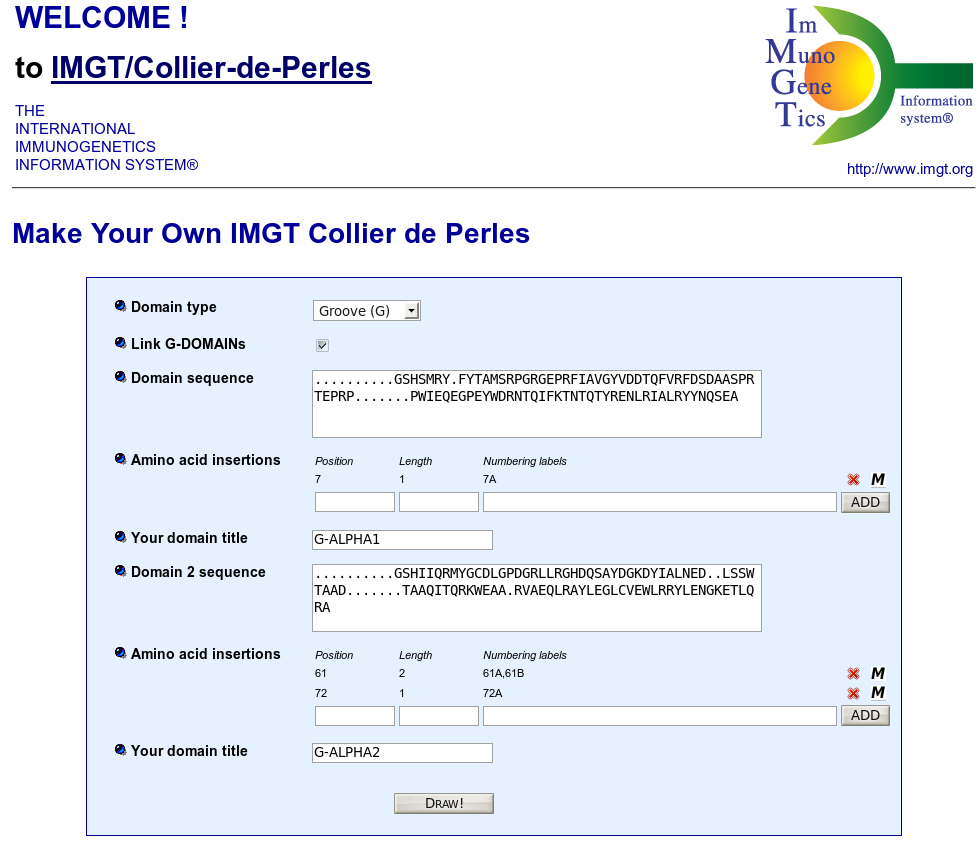

IMGT/Collier-de-Perles query (G domain)

  1. Locate the "Domain type" drop-down list and choose "Groove (G)". This will change the page of the web application.
    "Groove (G)" allows to draw IMGT Colliers de Perles for groove domains which include the G-DOMAIN of MH and the G-LIKE-DOMAIN of MhcSF other than MH. As a groove is made of 2 G domains, the sequences of the two domains for the IMGT Colliers de Perles are entered in the same page.
  2. Locate the "Link G-DOMAINs" checkbox. Check it if your sequences are domains of MH1 or RPI-MH1Like, to have them linked.
  3. Locate the "Domain sequence" text area, and enter the gaped sequence obtained, for example, from IMGT/DomainGapAlign, for the first G domain. For MH1, the sequence is that of the G-ALPHA1, for MH2, that of G-ALPHA and for RPI-MH1Like, that of G-ALPHA1-LIKE. Here are examples of gapped sequences (groove domain, G-ALPHA1 and G-ALPHA):
    G-ALPHA1   GSHSMRY.FSAAVSRPGRGEPRFIAMGYVDDTQFVRFDSDSACPRMEPRA.......PWVEQEGPEYWE..EETRNTKAHAQ.TDRMNLQTLRGYYNQSEA

    Or
    G-ALPHA    ..........EEHVIIQ.AEFYLNP....DQSGEFMFDFDGDEIFHVDMA..KKETVWRL.......EEFGR....FASFEAQGALANIAVDKANLEIMTKRSNYTPITN

  4. Locate the "Amino acid insertions" text area, and enter, if needed, amino acids insertions. This option is only needed if you deal with unusual sequences characterized by insertions compared to the reference sequences. This can be the case of MhcSF G-LIKE-DOMAIN that have amino acid insertions compared to the MHC G-DOMAIN. The program for renumbering is based on an alignment of Smith and Waterman, that use IMGT insertions as new amino acids and strongly penalize the opening of gaps in the reference sequence. To add an insertion, enter the position that precedes the insertion, the length (that is the number of amino acids to add) and the numbering label(s) of the novel positions, for instance "72,1,72A" means that, following 72, one insertion labelled 72A has to be added. Then click "ADD". Repeat the process if several insertions have to be entered.
  5. Locate the "Your domain title" text area, and enter a name that you would like to be displayed in the figure (optional).
  6. Locate the "Domain 2 sequence" text area, and enter the gaped sequence obtained, for example, from IMGT/DomainGapAlign, for the second G domain. For MHC-I, the sequence is that of the G-ALPHA2, for MH1, that of G-BETA and for RPI-MH1Like, that of G-ALPHA2-LIKE. Here are examples of gapped sequences (groove domain, G-ALPHA2 and G-BETA):
    G-ALPHA2   ..........GSHIIQRMYGCDLGPDGRLLRGHDQSAYDGKDYIALNED..LSSWTAAD.......TAAQITQRKWEAA.RVAEQLRAYLEGLCVEWLRRYLENGKETLQRA

    Or
    G-BETA     ........TRPRFLWQLKFECHFFNGTERVRLLERCIYNQEESVRFDSD..VGEYRAVT.......ELGRPDAEYWNSQKDLLEQRRAAVDTYCRHNYGVGESFTVQRR

  7. Locate the "Amino acid insertions" text area, and enter, if needed, amino acids insertions.
  8. Locate the "Your domain title" text area, and enter a name that you would like to be displayed in the figure (optional).
  9. Press the "Draw !" button to visualize the IMGT Collier de Perles for G domain. This will return a page showing the IMGT Collier de Perles taking into account your choices.

IMGT/Collier-de-Perles results (G domain)

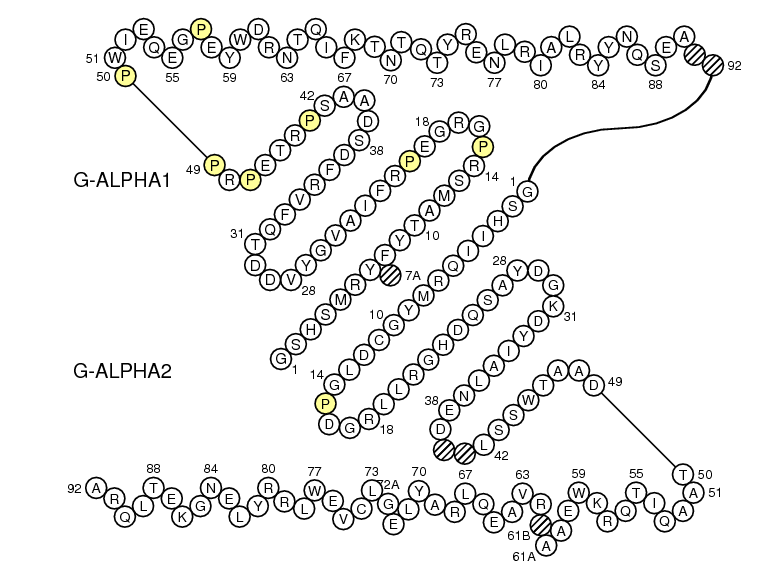

  1. IMGT Colliers de Perles of groove (G) domains of MH1 (the domains are linked as selected by the user).

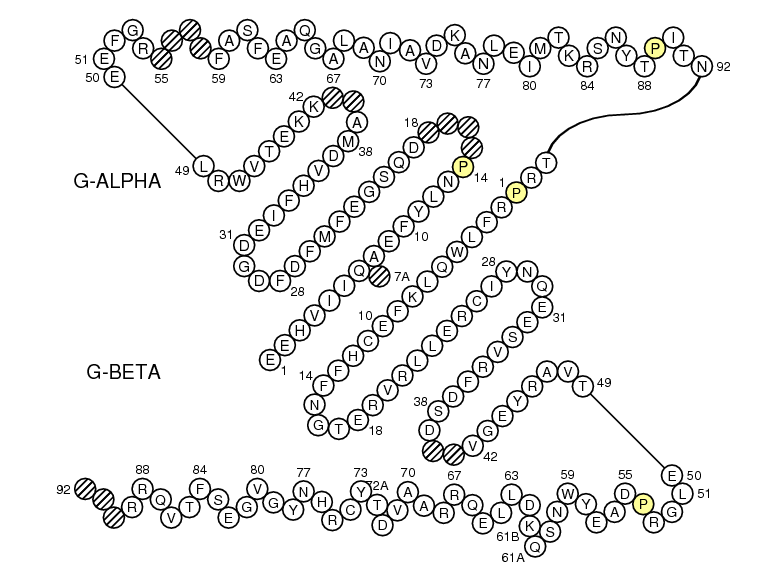

  2. IMGT Colliers de Perles of groove (G) domains of MH2 (the domains are linked as selected by the user).

IMGT Collier de Perles for S domain

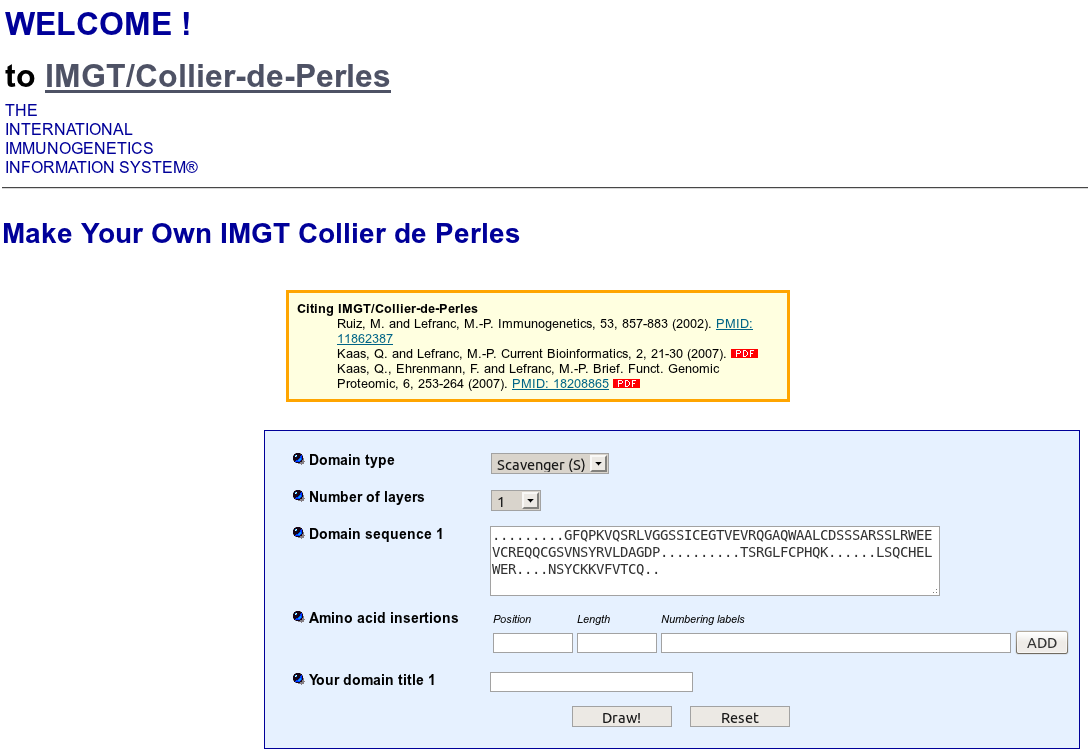

IMGT/Collier-de-Perles query (S domain)

  1. Locate the "Domain type" drop-down list and choose "Scavenger (S)". This will change the page of the web application. "Scavenger (S)" allows to draw IMGT Colliers de Perles for scavneger domains which include the S-DOMAIN of IgSF other than IG and TR.
  2. Locate the "Number of layers" drop-down list. Select 1 or 2, depending on the number of layers you want for the display of the IMGT Collier de Perles. Default is 1. This choice is only available for variable (V), constant (C) and scavenger (S) domains.
  3. Locate the "Domain sequence" text area, and enter your gaped sequence obtained, for example, from IMGT/DomainGapAlign.

    Here are examples of gapped sequences (constant domain):
    .........GFQPKVQSRLVGGSSICEGTVEVRQGAQWAALCDSSSARSSLRWEEVCREQQCGSVNSYRVLDAGDP..........TSRGLFCPHQK......LSQCHELWER....NSYCKKVFVTCQ..

  4. Locate the "Amino acid insertions" text area, and enter, if needed, amino acids insertions.

    This option is only needed if you deal with unusual sequences characterized by insertions compared to the reference sequences. This can be the case of IgSF C-LIKE-DOMAIN that have amino acid insertions compared to the IG and TR C-DOMAIN. The program for renumbering is based on an alignment of Smith and Waterman, that use IMGT insertions as new amino acids and strongly penalize the opening of gaps in the reference sequence. To add an insertion, enter the position that precedes the insertion, the length (that is the number of amino acids to add) and the numbering label(s) of the novel positions, for instance "84,1,84A" means that, following 84, one insertion labelled 84A has to be added. Then click "ADD". Repeat the process if several insertions have to be entered.
  5. Locate the "Your domain title" text area, and enter a name that you would like to be displayed in the figure (optional).
  6. Press the "Draw !" button to visualize the IMGT Collier de Perles for S domain. This will return a page showing the IMGT Collier de Perles taking into account your choices.

IMGT/Collier-de-Perles results (S domain)

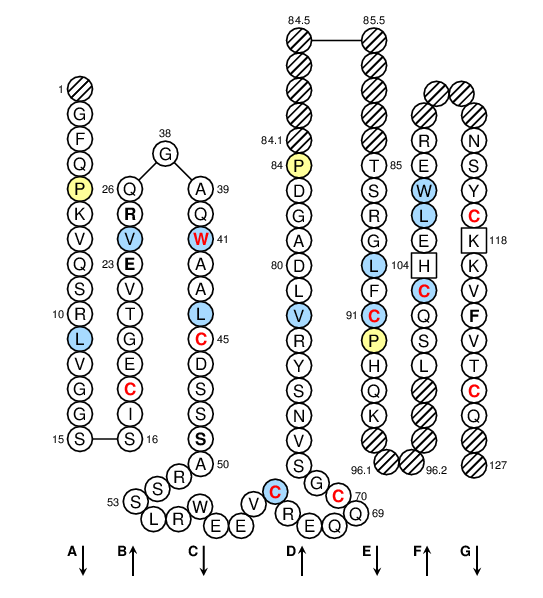

  1. IMGT Collier de Perles of a scavenger (S) domain, on one layer. Positions in blue mean that the AA of the user sequence at these positions is hydrophobic (hydropathy index with positive value) or is a tryptophan (W), like in 50% or more of analysed S domains. Positions with red and bold letters indicate the five conserved positions of a S domain: CYS 18, CONSERVED-TRP 41, CYS 45, CYS 60, CYS 70, hydrophobic 89, CYS 91, CYS 103, CYS 117 and CYS 124. Hatched positions correspond to gaps according to the IMGT unique numbering for S domain. Proline are shown in yellow. Arrows indicate the beta strands and their direction.

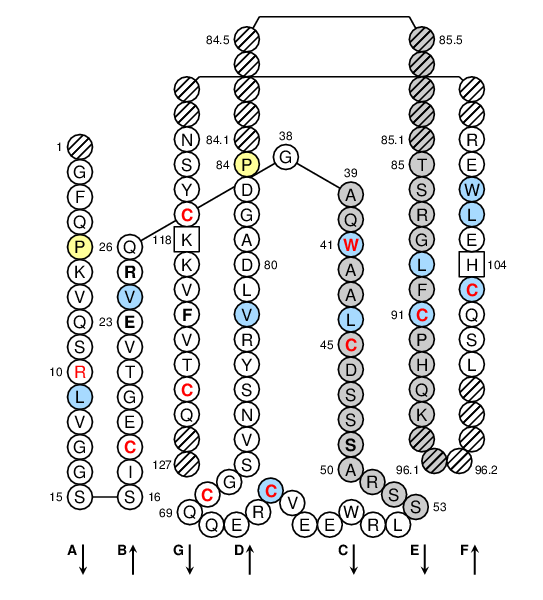

  2. IMGT Collier de Perles of a scavenger (S) domain, on two layers, obtained after selection of "2" in Number of layers.

IMGT/Collier-de-Perles results (F domain)

  1. IMGT Collier de Perles of a F domain, on one layer.
  2. IMGT Collier de Perles of a F domain, on two layers, obtained after selection of "2" in Number of layers.

IMGT/Collier-de-Perles results (A domain)

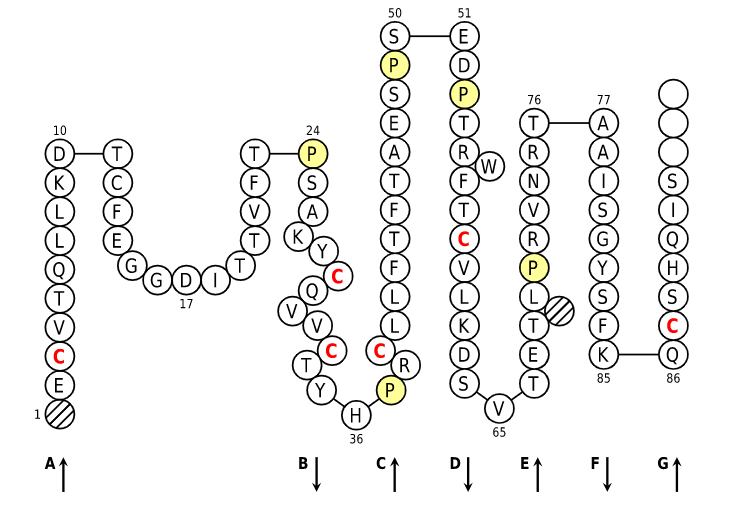

  1. IMGT Collier de Perles of a A domain, on one layer.

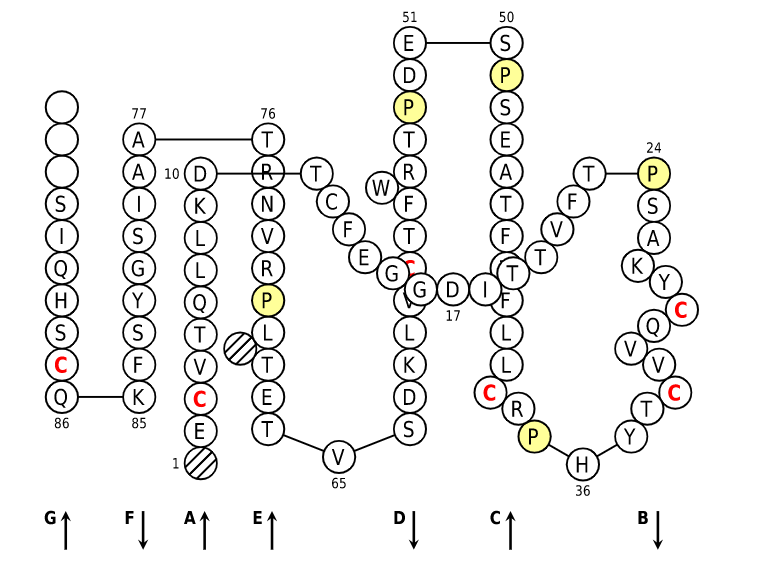

  2. IMGT Collier de Perles of a A domain, on two layers, obtained after selection of "2" in Number of layers.

Program revision

2.2.1 (2021-12-06)
  • Solve problem drawing IMGT Collier-de-Perles of V-DOMAIN with CDR3-IMGT more than 31 AA length: the input sequence is no more truncated.
2.2.0 (2020-02-12)
  • Small changes in the user interface
  • Remove a bug for some cases (C domain)
2.1.0 (30 April 2019)
  • The output image format is now SVG
  • Many internal changes
2.0.0 (7 February 2019)
  • Clean up user interface
  • Remove bug with the CDR3-IMGT length

References

[1]
Lefranc, M.-P. , Giudicelli, V., Ginestoux, C., Bosc, N., Folch, G., Guiraudou, D., Jabado-Michaloud, J., Magris, S., Scaviner, D., Thouvenin, V., Combres, K., Girod, D., Jeanjean, S., Protat, C., Yousfi-Monod, M., Duprat, E., Kaas, Q., Pommie, C., Chaume, D. and Lefranc G., IMGT-ONTOLOGY for immunogenetics and immunoinformatics. In Silico Biology, 4:17-29 (2004).
[2]
Lefranc, M.-P., WHO-IUIS Nomenclature Subcommittee for Immunoglobulins and T cell receptors report, Dev. Comp. Immunol. (in press).
[3]
Lefranc, M.-P., Pommié, C., Ruiz, M., Giudicelli, V., Foulquier, E., Truong, L., Thouvenin-Contet, V. and Lefranc G., IMGT unique numbering for immunoglobulin and T cell receptor variable domains and Ig superfamily V-like domains, Dev. Comp. Immunol., 27:55-77 (2003). PMID:12477501.
[4]
Lefranc, M.-P., Pommié, C., Kaas, Q., Duprat, E., Bosc, N., Guiraudou, D., Jean, C., Ruiz, M., Da Piedade, L., Rouard, M., Foulquier, E., Thouvenin, V. and Lefranc G., IMGT unique numbering for immunoglobulin and T cell receptor constant domains and Ig superfamily C-like domains, Dev. Comp. Immunol., 29:185-203 (2005). PMID:15572068.

Created: 10/12/06

Editors: Manuel Ruiz (2001), Quentin Kaas (2001-2005), François Ehrenmann (2006-2010), and Patrice Duroux (since 2011)
